TL;DR: Most SERP guides wait 30–60 minutes for the first WhatsApp touch. This guide implements a 15-minute Speed-to-Lead Recovery Loop with Shopify polling or WooCommerce webhooks, deduplication guards, and Whapi.Cloud sends—no Meta template approval. Production patterns below cover Node.js, Python, and a focused n8n loop.
Why 15 Minutes Beats the Standard 30–60 Minute Window
Abandoned checkouts cost e-commerce stores billions each year, yet most recovery stacks still batch email for an hour. The differentiator is not another channel—it is how fast you reach intent before it cools.

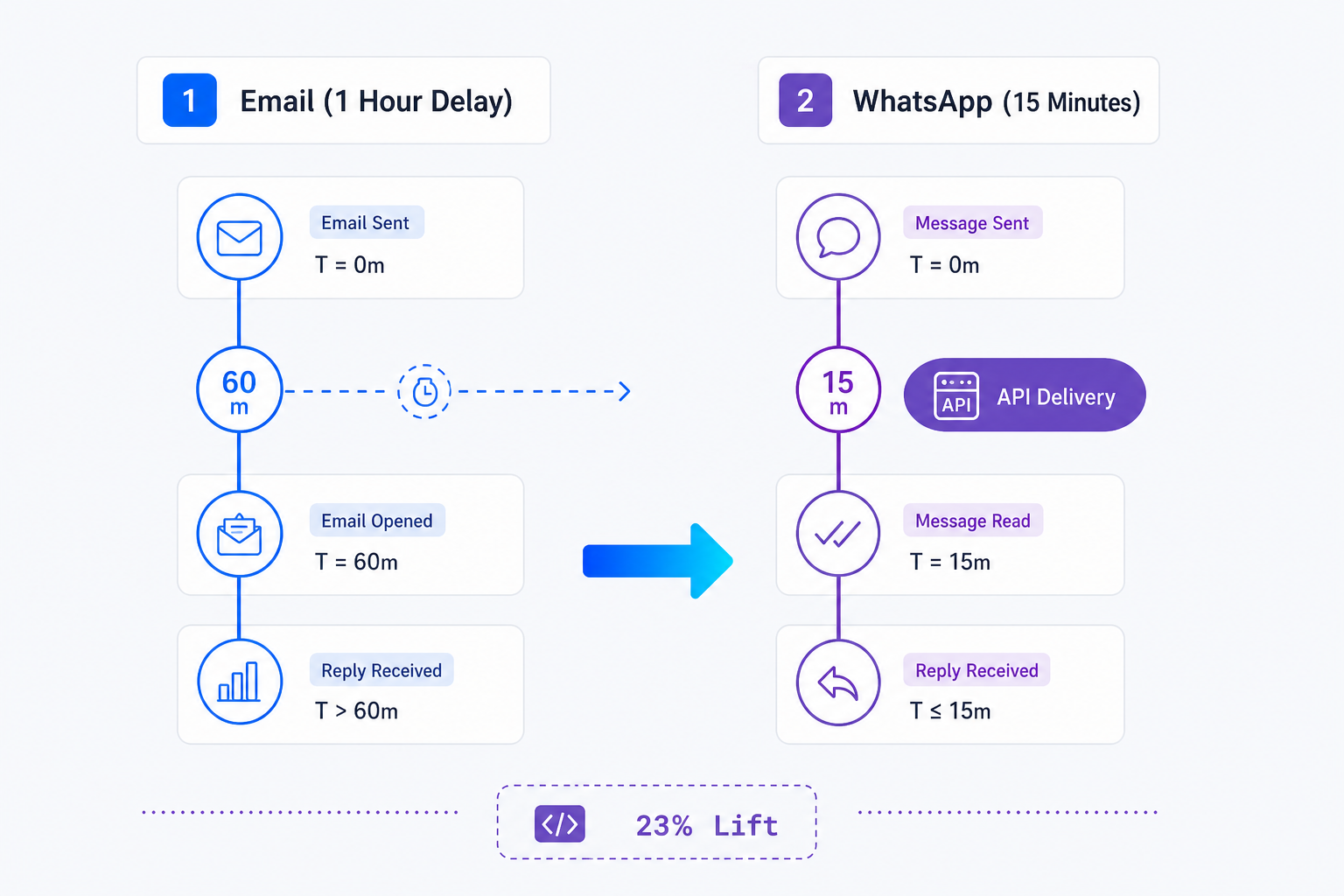

Industry guides default to a 30–60 minute first WhatsApp message. Data from recovery platforms shows a 23% lift when the first touch lands under 30 minutes. A Speed-to-Lead Recovery Loop targets 15 minutes because lock-screen visibility beats promotional tabs—and because Shopify and WooCommerce both allow you to detect abandonment in that window if you wire triggers correctly.
| Metric | Email recovery | WhatsApp recovery (15-min loop) |
|---|---|---|
| Open / read rate | 15–20% typical | Up to 98% (lock-screen delivery) |
| First-touch timing | 60+ minutes (ESP batching) | 15 minutes (cron or webhook + Wait node) |
| Recovery rate | 3–5% industry average | 15–30% with conversational follow-up |
| Cost model at 10k carts/mo | ESP fees + low conversion | Flat Whapi subscription vs $500–$1,500 Meta marketing fees |
A mid-market jewelry store moved its first touchpoint to 20 minutes via WhatsApp and recovered $18,400 in 30 days—not with a bigger discount, but by showing up before the shopper opened a competitor tab.
Shopify: Polling Without Webhooks (+ Dedup)
Shopify has no native abandoned-cart webhook—checkout webhooks fire on creation, not on abandonment. A cron job polling checkouts.json is the reliable trigger for a 15-minute loop.
Poll every 5 minutes and select checkouts created between 15 and 20 minutes ago with status=open and no completed_at. Full reference: Whapi.Cloud documentation and our Node.js WhatsApp bot guide.
// Fetch checkouts created between 15 and 20 minutes ago
const fetchAbandonedCheckouts = async () => {
const fifteenMinsAgo = new Date(Date.now() - 15 * 60000).toISOString();
const twentyMinsAgo = new Date(Date.now() - 20 * 60000).toISOString();
const url = `https://${SHOPIFY_STORE}/admin/api/2024-04/checkouts.json?created_at_min=${twentyMinsAgo}&created_at_max=${fifteenMinsAgo}&status=open`;
const response = await fetch(url, {
headers: { 'X-Shopify-Access-Token': process.env.SHOPIFY_TOKEN }
});
const { checkouts } = await response.json();
return checkouts.filter(c => !c.completed_at);
};
Idempotency: polling every 5 minutes will re-fetch the same checkout unless you track processed IDs. Store processed_checkout_ids in Redis, PostgreSQL, or even a JSON file on first send—skip any ID already marked sent.
// After a successful Whapi send — mark checkout as processed
async function markCheckoutSent(checkoutId) {
await redis.sadd('processed_checkout_ids', checkoutId);
}
async function shouldSend(checkoutId) {
const alreadySent = await redis.sismember('processed_checkout_ids', checkoutId);
return !alreadySent;
}
Check-before-send: re-query the checkout or order status immediately before calling Whapi. If completed_at is set or financial status is paid, abort—this guard alone prevents the most common support complaint in DIY recovery bots.
WooCommerce: Webhook Trigger + Data Mapping
WooCommerce supports real webhooks—unlike Shopify's checkout gap. Register a webhook on checkout updates, wait 15 minutes, then map metadata to human-readable copy before sending.
Webhook setup (5 steps):
- In WP Admin go to WooCommerce → Settings → Advanced → Webhooks.
- Click Add webhook; set Topic to Order updated or use a checkout plugin hook if you track draft orders.
- Set Delivery URL to your n8n webhook or backend endpoint (HTTPS required).
- Set Secret and verify the signature in your handler.
- In the handler, enqueue a 15-minute delayed job—only proceed if order status is still
pending/ cart unpaid.

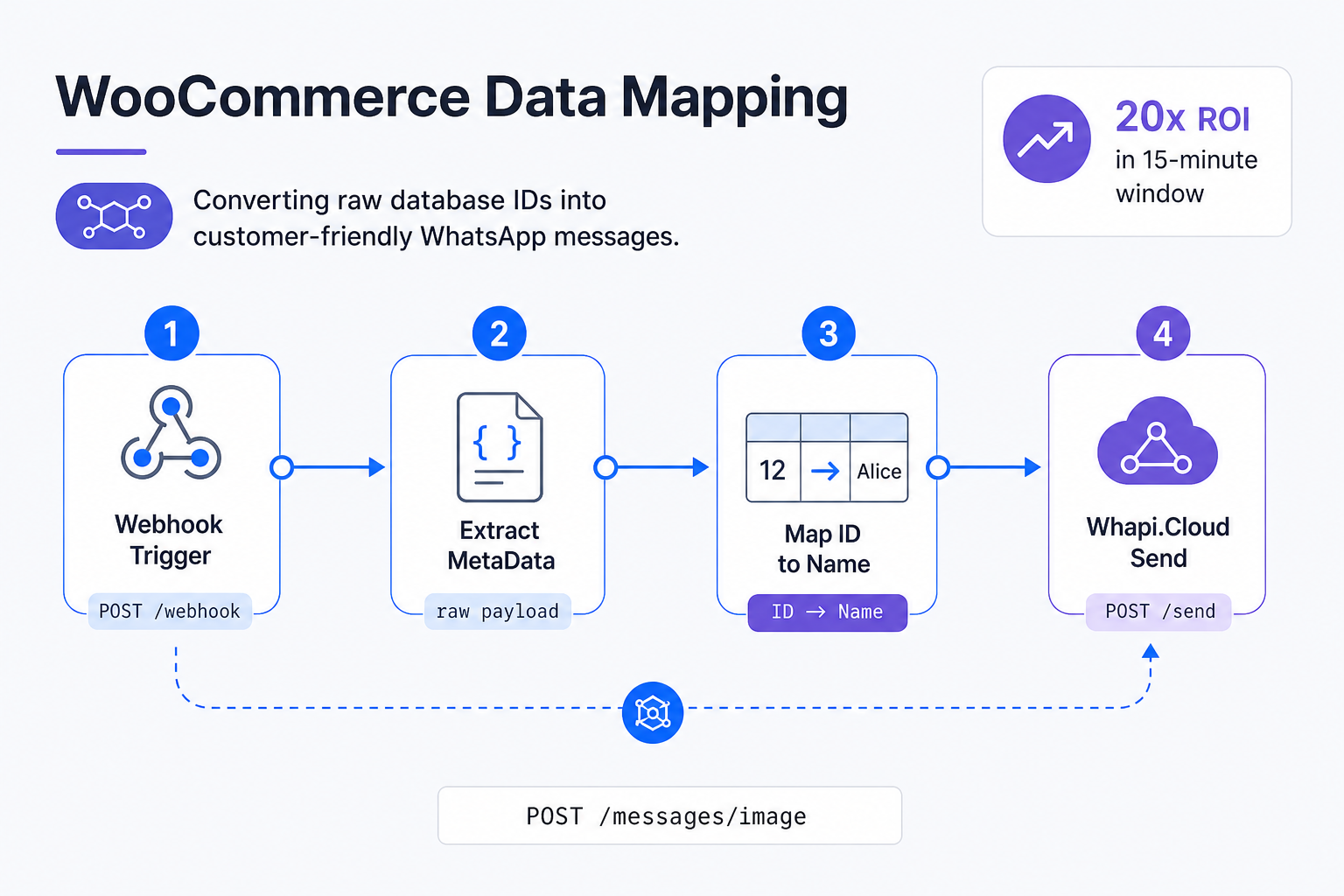

Map _billing_first_name, _billing_phone, and product names—not raw IDs like city_id: 4502. Normalize phones with libphonenumber before hitting the API. Product photos via /messages/image outperform text-only reminders for fashion and retail.
import requests
import os
def send_recovery_image(phone, product_name, image_url):
payload = {
"to": f"{phone}@s.whatsapp.net",
"media": image_url,
"caption": f"Hi! We noticed you left the {product_name} in your cart. Ready to complete your order?"
}
headers = {
"Authorization": f"Bearer {os.getenv('WHAPI_TOKEN')}",
"Content-Type": "application/json"
}
response = requests.post("https://gate.whapi.cloud/messages/image", json=payload, headers=headers)
return response.json()
Send via Whapi API (Text + Image Endpoints)
Whapi.Cloud sends conversational recovery messages without Meta template approval. Use POST /messages/text for the 15-minute check-in and POST /messages/image when a product photo improves recall.
Text payload (Shopify polling output → send):
await fetch('https://gate.whapi.cloud/messages/text', {
method: 'POST',
headers: {
Authorization: `Bearer ${process.env.WHAPI_TOKEN}`,
'Content-Type': 'application/json'
},
body: JSON.stringify({
to: `${phone}@s.whatsapp.net`,
body: `Hi ${firstName}, still thinking about ${productName}? Your cart is saved here: ${checkoutUrl}`
})
});
Ready message copy (no template approval):
- 15-minute check-in: "Hi {name}, you left {product} in your cart. Want help checking out? Reply here and we'll hold it for you."
- 24-hour nudge (optional): "Quick update—{product} is still in your cart. {X} customers bought this week. Need a size or shipping question answered?"
- 48-hour close (optional): "Last note from {store}: your cart expires soon. Reply STOP anytime to opt out."
Consent Without WABA: Opt-In Patterns That Still Convert
You do not need Meta WABA onboarding to run recovery—but you do need a defensible consent path. A checkout checkbox ("Send me order updates on WhatsApp") plus conversational tone beats cold blasts.
Practical pattern: pre-check or optional opt-in at checkout, store consent in order metadata, and honor STOP replies by flagging the number in your CRM. Keep volume modest (one recovery thread per abandonment) to protect report rate. EU stores should document legitimate-interest or consent basis with legal counsel—this guide covers engineering patterns, not jurisdiction-specific legal advice.
No-Code: n8n 15-Min Loop with Whapi.Cloud

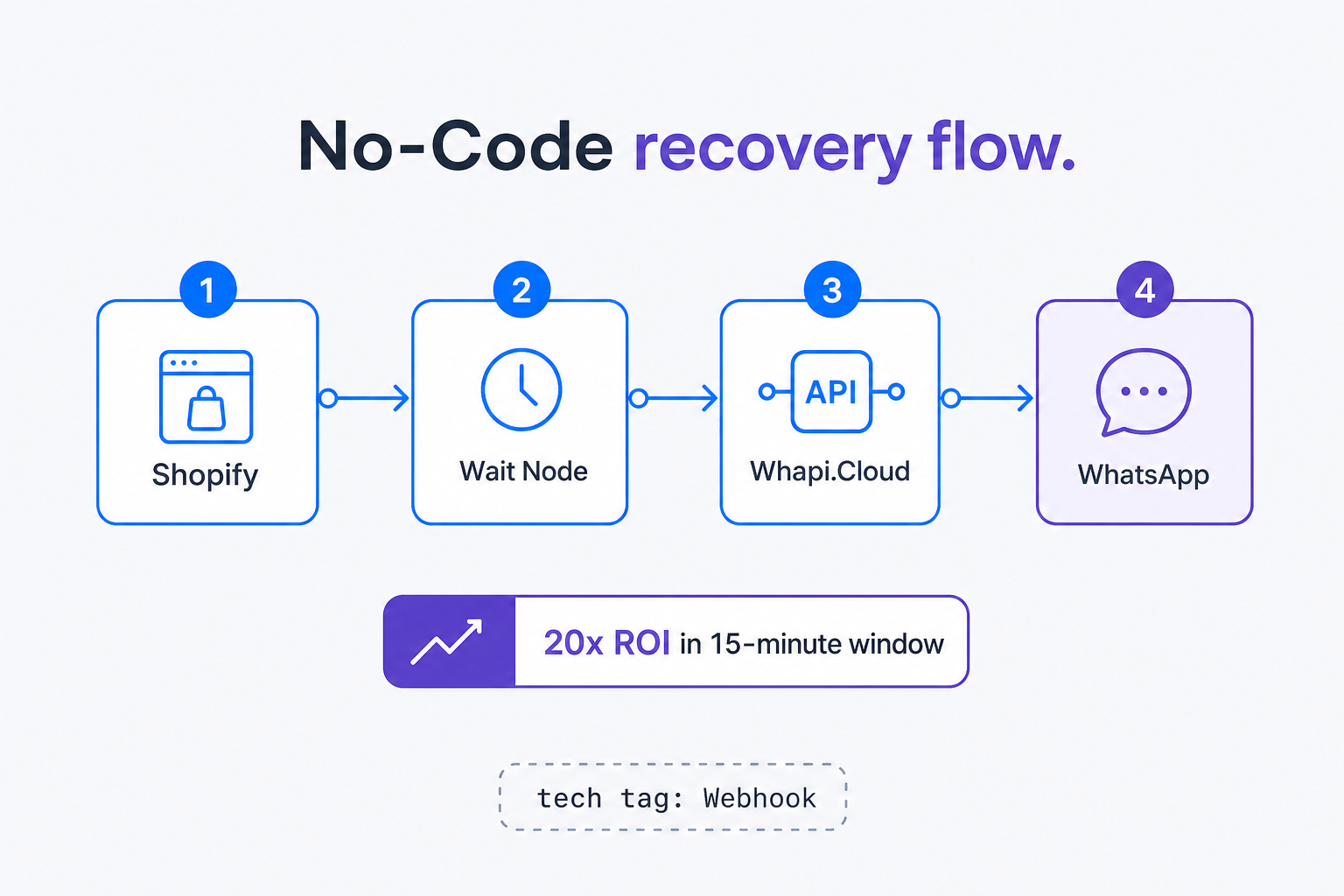

The no-code path mirrors production code: trigger → Wait 15 minutes → check-before-send → Whapi node. Do not copy generic 30 min / 4 h / 24 h sequences—your edge is the first 15-minute touch.
Flow: Shopify poll trigger (or WooCommerce webhook) → IF phone valid → Wait 15 min → HTTP request to Shopify/Woo to confirm unpaid → Whapi.Cloud node → mark processed. Optional follow-ups at 24 h / 48 h only if the first message got no reply. See the n8n WhatsApp integration docs.
Production Edge Cases: When Recovery Messages Fail
Most failed trials are not API bugs—they are data or timing issues. Log each failure mode below before you scale sends.
| Failure mode | Symptom | Fix |
|---|---|---|
| Invalid phone / missing country code | API 400 or silent drop | Normalize with libphonenumber; require E.164 at checkout |
| Number not on WhatsApp | Delivery failure event | Fall back to email/SMS; do not retry WhatsApp blindly |
| Already purchased | Angry customer reply | Check-before-send on order status every time |
| Duplicate send (polling) | Two identical messages 5 min apart | processed_checkout_ids registry + Redis SET |
| Rate limit / burst | Throttled sends during flash sale | Queue with max N messages/minute per number |
| High-AOV cart (>$500) | Low reply rate on automated text | Route to human agent—see FAQ below |
ROI Calculator: Flat Fee vs Meta Per-Message Costs
Meta Cloud API charges marketing-category fees per message ($0.05–$0.15). Whapi.Cloud uses a flat monthly fee per number—your cost-per-recovery falls as volume rises.
Cost-per-recovery formula: (monthly Whapi fee + infra) ÷ (abandoned carts × recovery rate). Example: $99/mo plan, 2,000 abandons, 12% recovery → ~$0.41 per recovered order before product margin—not $0.10 × 3 touches × 2,000 carts in Meta fees alone.
| Monthly abandoned carts | Meta API (3 touches × $0.10) | Whapi flat subscription |
|---|---|---|
| 1,000 | ~$300 / month | Fixed plan (see pricing) |
| 5,000 | ~$1,500 / month | Same flat plan |
| 10,000 | ~$3,000 / month | Same flat plan → ~12x ROI vs fee stack at scale |
Metrics to track: recovery rate (% carts recovered), click-through on checkout link, cost per recovered cart, opt-out/report rate, and time-to-first-reply. Flat pricing makes multi-touch sequences economically viable—unlike per-message billing that penalizes the 15-minute + 24 h pattern.
Whapi.Cloud also absorbs WhatsApp protocol updates upstream—your REST calls stay stable while Baileys or self-hosted sessions would need manual maintenance.
